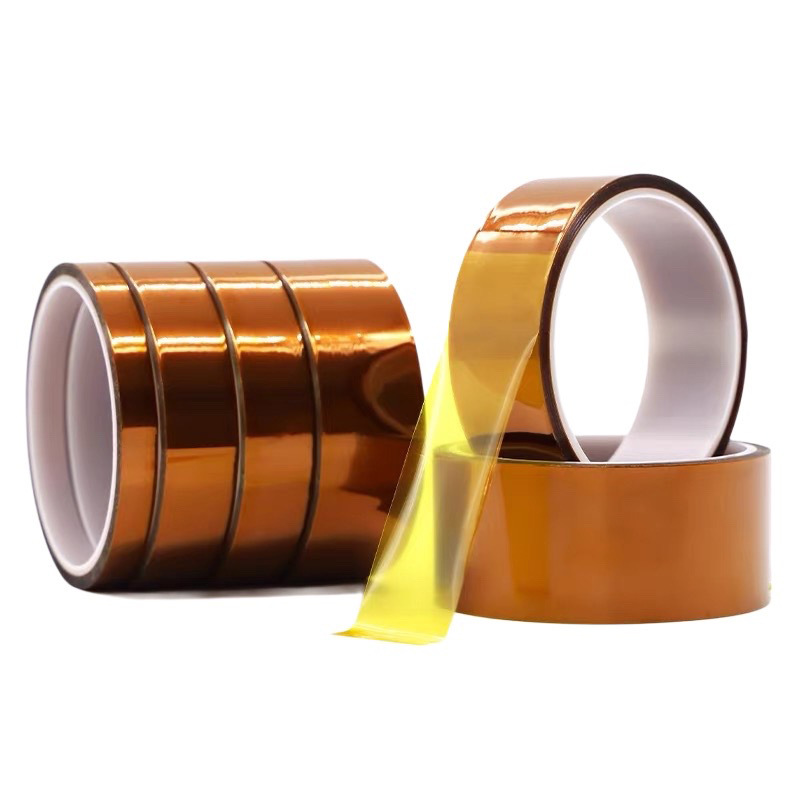

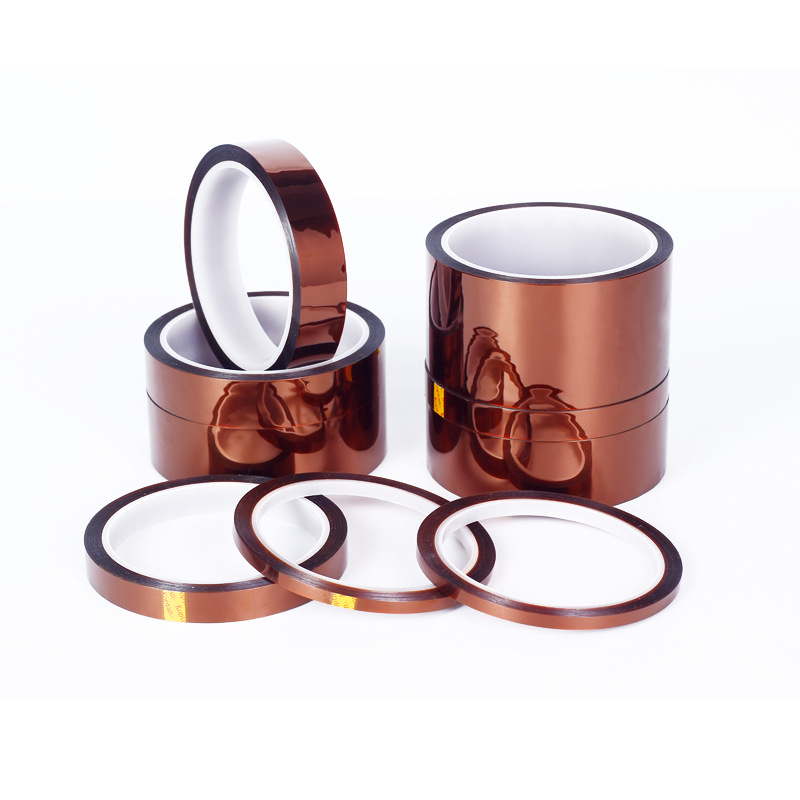

Gold finger tape, also known as polyimide tape, is a polyimide film used as a substrate to coat high-performance silicone pressure-sensitive adhesives on one side. High-precision coating reaches ± 2.5um, no scratches, drawing and other phenomena, good shear, easy punching die-cutting process, with excellent high temperature resistance and solvent resistance!
Item No :
S0619BProduct Origin :
DONGGUANColor :
AmberLead Time :
15 Working daysWidth :
2-1000mmLENGTH :
33m or customizedThickness(mm) :
0.06mm-0.3mm
Products Description

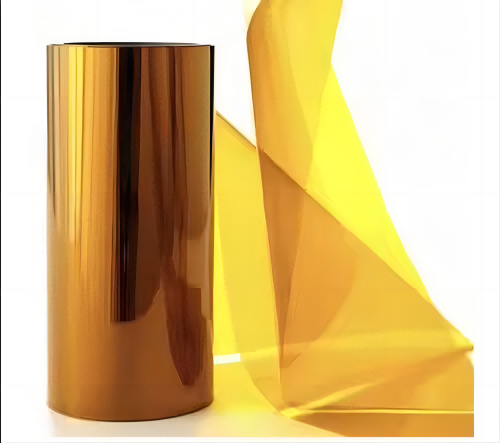

Polyimide films provide excellent electrical, thermal, physical and chemical properties over a wide temperature range, making them superior for electrical insulation applications.

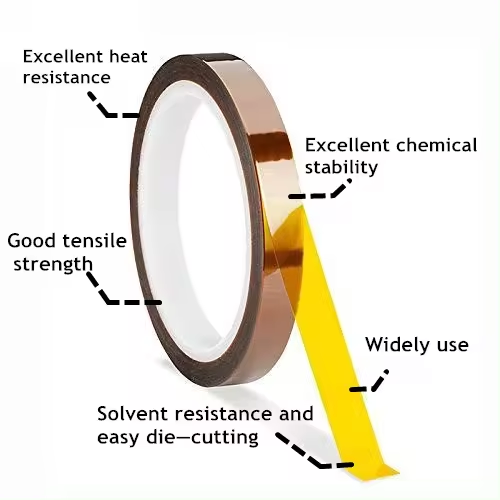

Polyimide film has wide range of thickness from 7um to 250um according to customer requirement. It has a excellent heat resistance ,excellent chemical stability ,radiation resistance,solvent resistance and easy for die-cutting ..
| Polyimide Tape Parameter | |
| Film thickness(mm) | 0.015mm-0.125mm |
| Total thickness(mm) | 0.02mm-0.2mm |
| Adhesion To Steel(N/25mm) | 2.5-10(N/25mm) |
| Tensile Strength(kg/25mm) | 10-40(kg/25mm) |
| Elongation at break(%) | 25%-85% |
| Temperature Resistance(℃) | 260℃-300℃ |
| Voltage Resistance(KV) |
2.5KV-14KV |
* Ideal for high temperature applications up to 350℃ * Exceeds UL 94 V-0 flammability
