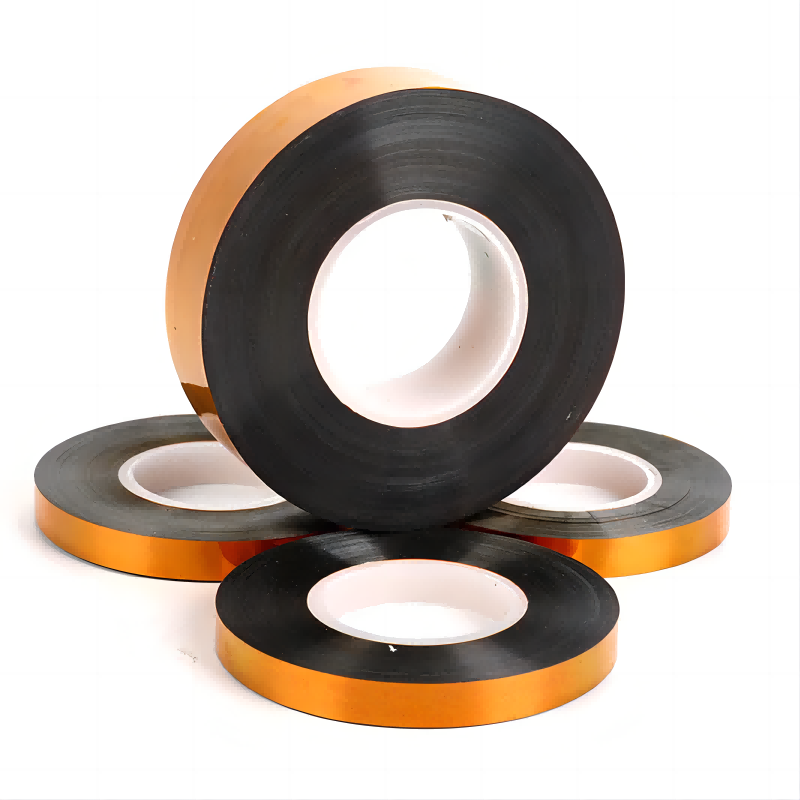

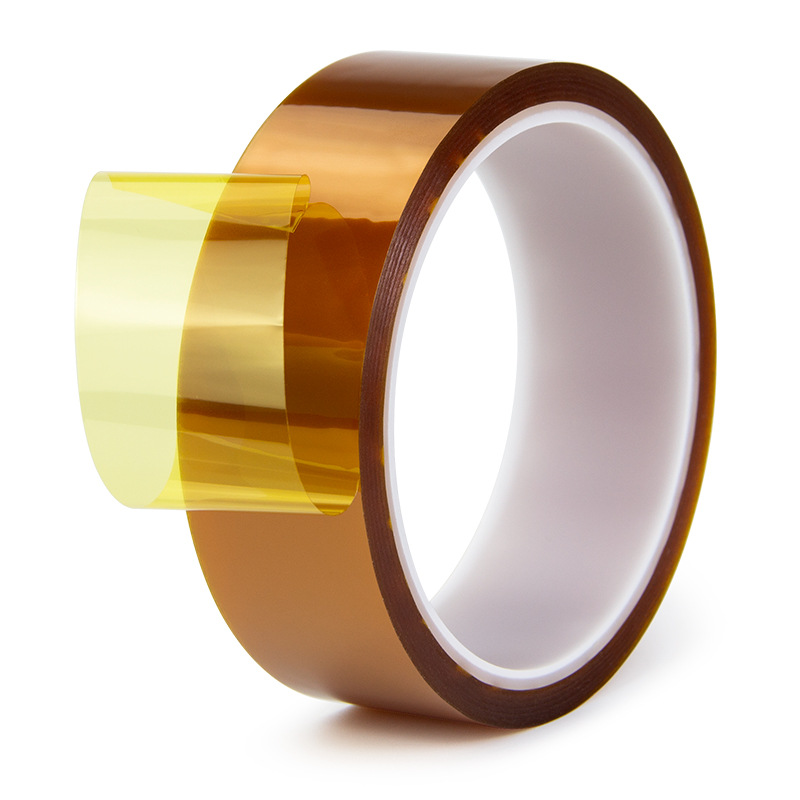

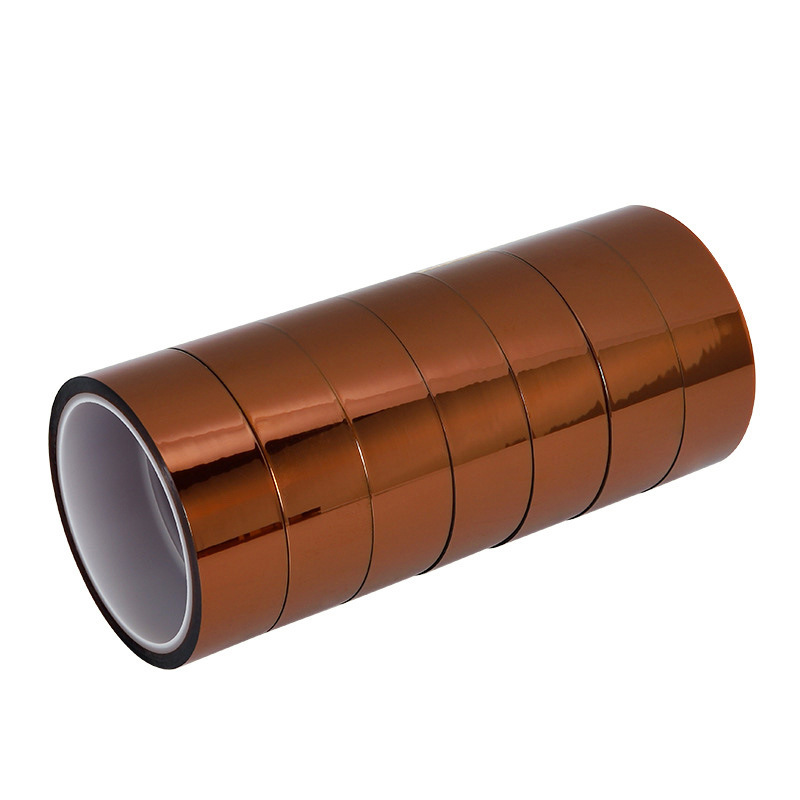

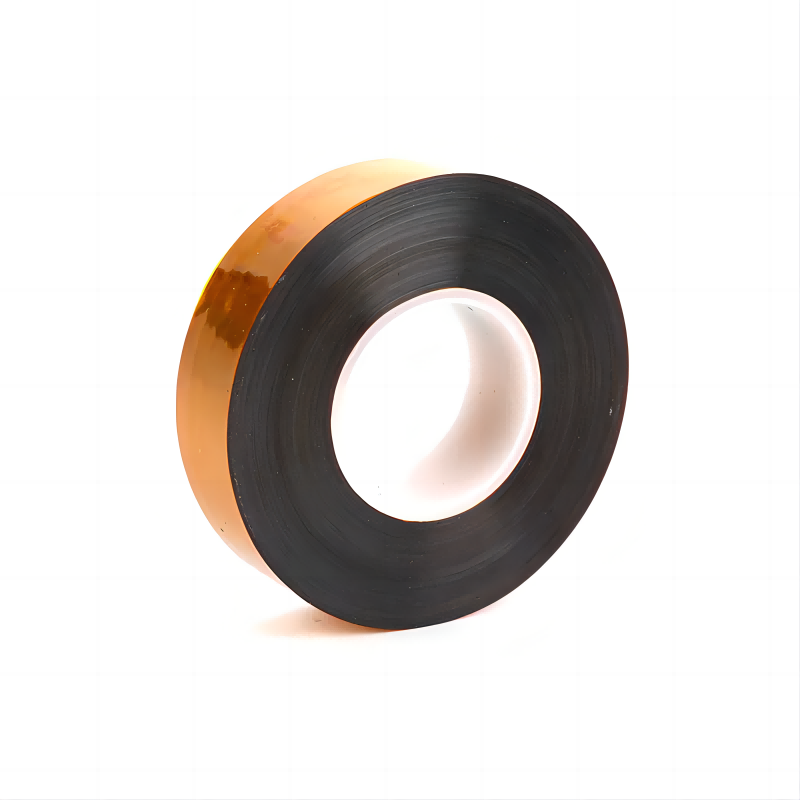

Gold finger tape, also known as polyimide tape, is a polyimide film used as a substrate to coat high-performance silicone pressure-sensitive adhesives on one side. High-precision coating reaches ± 2.5um, no scratches, drawing and other phenomena, good shear, easy punching die-cutting process, with excellent high temperature resistance and solvent resistance!
Item No :
S0619BProduct Origin :
DONGGUANColor :
AmberLead Time :
15 Working daysWidth :
2-1000mmThickness(mm) :
0.06mm-0.3mmLENGTH :
33m or customizedName: Goldfinger high temperature tape
Brand: SENMA
Model: 005
Material: Silica Gel
Size: 95*10*33mm or as your request
Color: Gold,black or custom
Temperature: over 180C
Advantage:1.Safe 2.insulated 3.low noise4.no trace5.high temperature resistance180 C
About fabric: It is a high performance, multi-purpose composite materialsmooth surface, has good viscosity resistance, high temperatureresistance, insulation resistance voltage and certain chemicalcorrosion resistance
Application
1. In the SMT process, the thermocouple wire shall be pasted when measuring the temperature of the reflux furnace;
2. In the SMT process, it is used to paste the flexible circuit board (FPC) on the fixture, so as to carry out a series of processes such as printing, patch and testing;
3. It can be wrapped on the cable and used as insulating tape;
4. It can be pasted on the connector for picking up materials by the mounter, so as to replace the iron sheet;
5. It can be die cut into any other shape for some special purposes.
Physical Properties
| Product name | Heat resistant transfer sublimation reflective kaptone tape high temperature insulation polyimide tape |
| Total Thinckness | 0.03mm,0.05mm,0.055mm,0.06mm,0.08mm,0.1mm,0.12mm,0.15mm and so on. |
| Width | From 1mm to 500mm/1000mm and so on. |
| Length | 33M,66M,100M,200M,500M and so on. |
| Heat Resistance | Short term 280 degrees, Long term 260 degrees |
| Peeling Strengthto Steel Plate |
MIN 5.0N/25MM |
| Tensile Strength |
MIN 115N/25MM |
| Elongation Break |
MIN 50% |
Contact To Us
Tel: +86-13332606223
Email：sales1@senmatech.com
Please scan the QR code and add me to serve you!
Gold finger tape, also known as PI tape or PI tape, is a tape made of polyimide film as the base material and imported silicone pressure-sensitive adhesive. It has high and low temperature resistance, acid and alkali resistance, solvent resistance, electrical insulation (H grade), radiation protection and other properties.
