ESD Tape Polyimide Film Silicone Tape For Interlayer Insulation of Motor And PI Film Heater

     Anti-static ESD PI Tape,also call ESD Polyimide Tape, consists of low static polyimide film coated with silicone adhesive to withstand temperature up to 260℃ (500F), packaged in a 36 yard (33m) roll.

This tape generates extremely low levels of triboelectric charge when it is unwound from the roll and also when removed from most surfaces on which it is placed. This makes the tape an excellent choice for use near electronic components and assemblies.

  • Item No :

    S0628B
  • Product Origin :

    DONGGUAN
  • Color :

    Amber
  • Lead Time :

    15 Working days
  • Width :

    0.5 - 1200 mm
  • LENGTH :

    33m or customezied



Anti-static ESD PI Tape For PCB Masking





The polyimide tape which we produce have following characteristic:

1.  Good resistance to aging.

2. Good resistance to heat

3. Competitive price.

4. High quality/timely delivery.

5.All of our products passed SGS report and ISO9001&ISO14000.

6. Offer colors as per customer's samples.

7.Mainly used for automobile industry, electrical industry,  PCB

8.Offer special packing as per customer's requirements, such as label, printing logo on  cartons/boxes.

Specification


Thickness: 0.055mm, other thickenss are also be available.

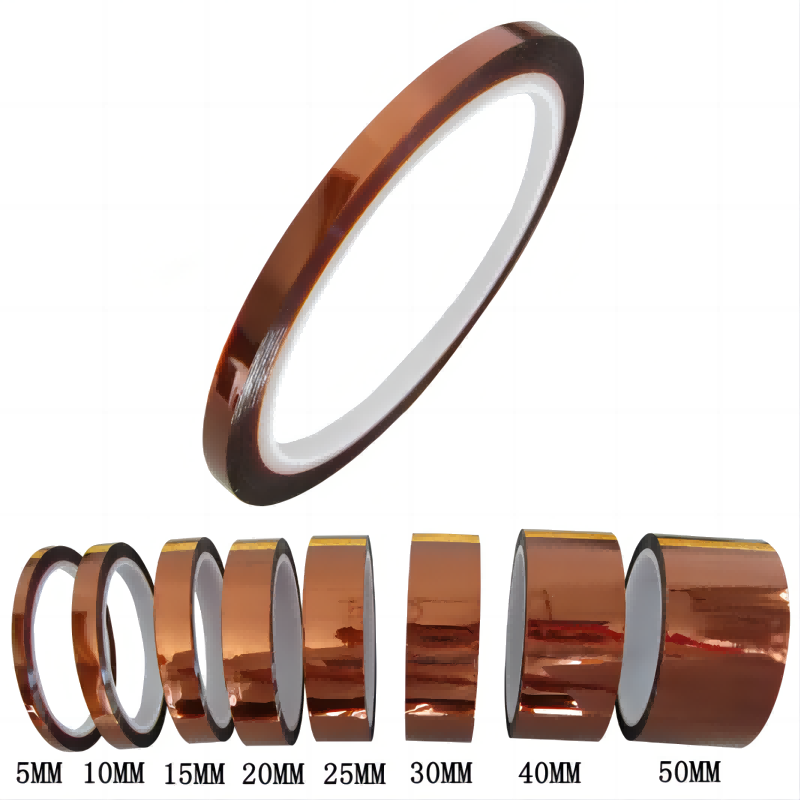

Width:Usually are 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 70mm, 100mm. or as per client's needs.



Length:  standard length is 33m, it can be customized according to your requests.



Color: Amber,m Golden



Base Material Polyimide
Adhesive Coating Silicone
Peeling force 50g/in
Strength force 60%
Heat resistance
260°C/30min
Tensile strength
7kg/in




Products Application

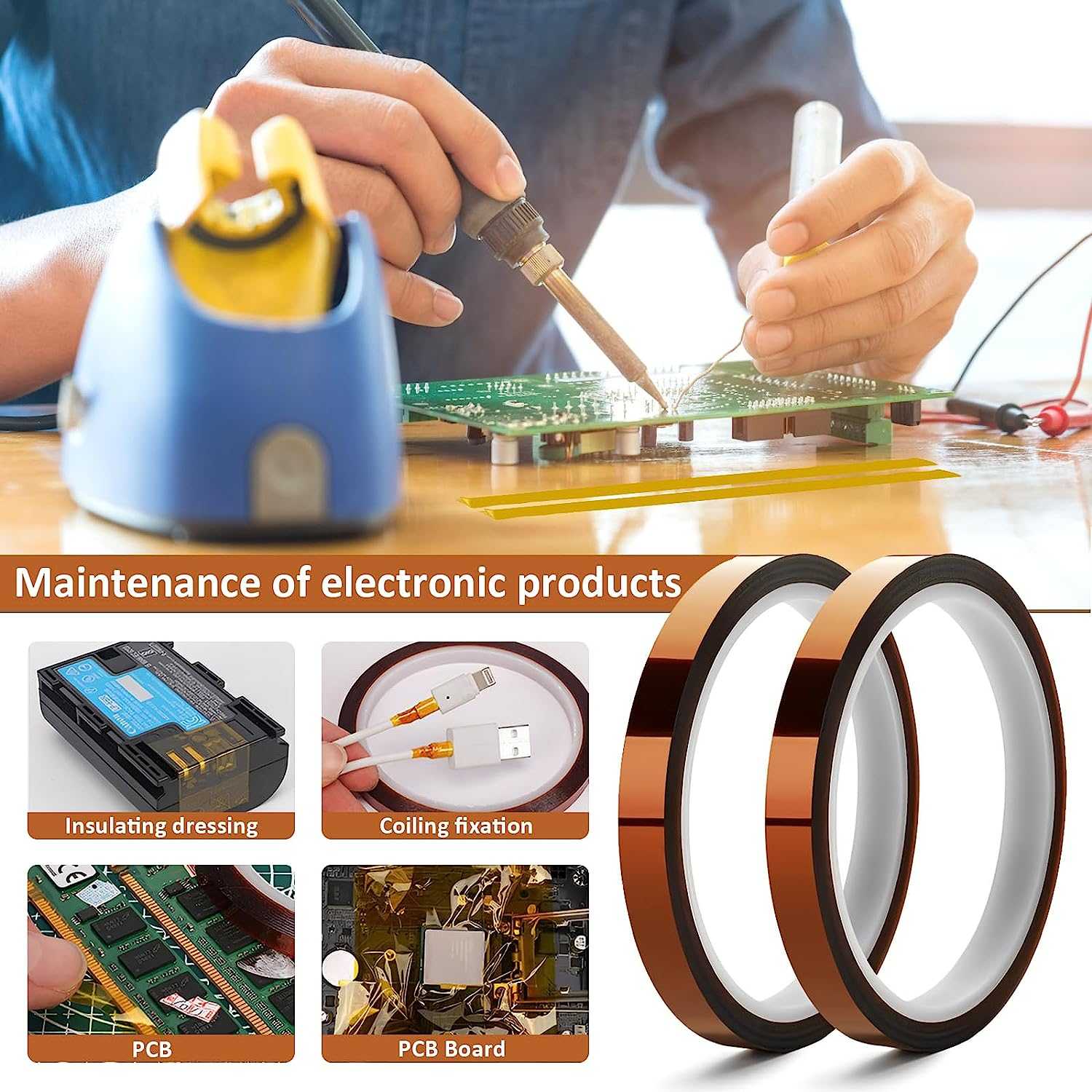

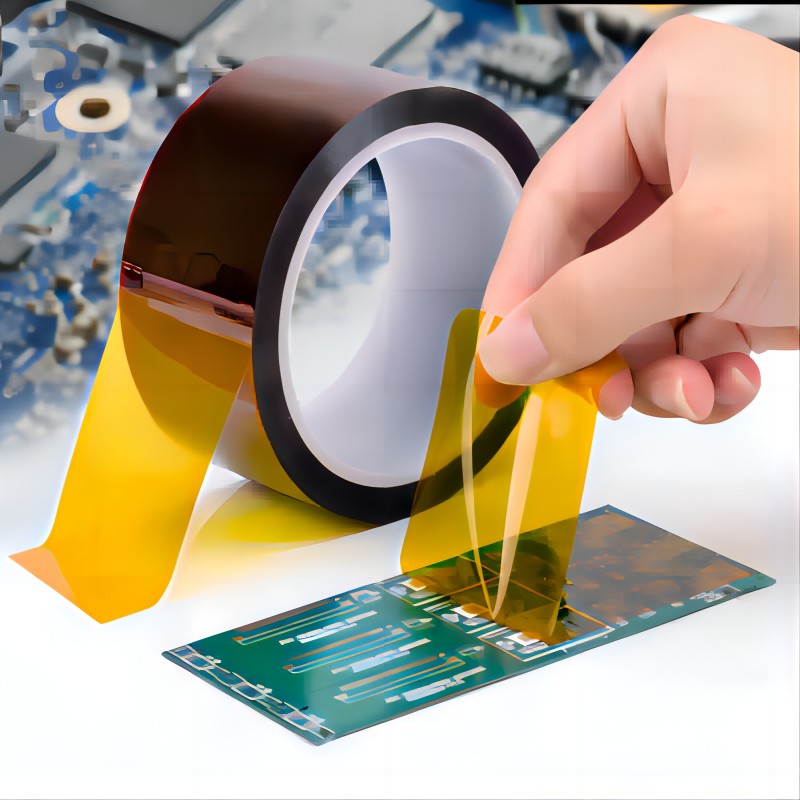

1. Protect golden finger when PCB board in soldering tin furnace, insulation of coil, wave-soldering protection, electrical insulation, high temperature resistance, No residue leaving after peeling off.
2. Electrionics industry, fix lithium battery's anode, protect adhesion away from influence of electrolyte.
3. SMT tin stove, Lithium battery, motors, coils, capacitors and variable frequency power supply
